Alert types

Butler supports alerts for multiple task types in Qlik Sense Enterprise on Windows (QSEoW):

Reload tasks

• Reload task failure: Send alerts when reload tasks fail, no matter if they were started on schedule or manually from the QMC.
• Reload task aborted: Send alerts when reload tasks are manually aborted in the QMC.
• Reload task success: Send alerts when reload tasks complete successfully.

Distribute tasks

• Distribute task failure: Send alerts when app distribution tasks fail.
• Distribute task success: Send alerts when app distribution tasks complete successfully.

Preload tasks

• Preload task failure: Send alerts when app preload tasks fail.
• Preload task success: Send alerts when app preload tasks complete successfully.

External program tasks

• External program task failure: Send alerts when external program tasks fail.
• External program task success: Send alerts when external program tasks complete successfully.

User sync tasks

• User sync task success: Send alerts when user directory sync tasks complete successfully.

Task type support

Butler automatically detects the task type and routes notifications to the appropriate handlers. The task types are:

• Type 0: Reload tasks
• Type 1: External program tasks
• Type 2: User sync tasks
• Type 3: Distribute tasks (app distribution)
• Type 4: Preload tasks (app preloading)

Alert destinations and options by task type

Reload tasks

Alerts can be sent to these destinations for reload tasks, with different options available for each destination.
Each destination can be individually enabled/disabled in the config file.

Destination	Reload task failure	Reload task aborted	Reload task success	Enable/disable alert per reload task	Per reload task alert recipients	Flexible formatting	Basic formatting	Comment
Email	✅	✅	✅	✅	✅	✅	✅	Basic emails can be sent using a log appender.
Slack	✅	✅				✅	✅
MS Teams	✅	✅				✅	✅
MQTT	✅	✅					✅	Basic: task name only. Full: Complete task details as JSON.
InfluxDB	✅		✅	✅		✅		Metrics stored for visualization in Grafana or similar tools.
New Relic	✅	✅		✅		✅		Sends both logs and events. The failed/aborted reload's script log is available in New Relic.
Signl4	✅	✅		✅		✅		Alerts are presented in Signl4's own format in their mobile app.
Outgoing webhook	✅	✅						HTTP POST to custom webhooks. Formatting is not relevant - sends structured JSON data.

Distribute tasks (app distribution)

Alert destinations for distribute tasks:

Destination	Distribute task failure	Distribute task success	Comment
Email	✅	✅	Customizable email notifications with task details.
InfluxDB	✅	✅	Metrics stored for visualization in Grafana or similar.

Preload tasks (app preloading)

Alert destinations for preload tasks:

Destination	Preload task failure	Preload task success	Comment
Email	✅	✅	Customizable email notifications with task details.
InfluxDB		✅	Metrics stored for visualization in Grafana or similar.

External program tasks

Alert destinations for external program tasks:

Destination	External program task failure	External program task success	Comment
InfluxDB	✅	✅	Metrics stored for visualization in Grafana or similar.

User sync tasks (user directory synchronization)

Alert destinations for user sync tasks:

Destination	User sync task success	Comment
InfluxDB	✅	Metrics stored for visualization in Grafana or similar.

Limited notification channels for non-reload tasks

Currently, non-reload task types (distribute, preload, external program, user sync) have more limited notification channel support compared to reload tasks. This is because these task types are less commonly used and have different monitoring requirements. Email and InfluxDB provide the core monitoring capabilities for these task types.

How it works

In order for Butler initiated alerts to become a reality, Butler must somehow be notified that the event of interest (for example a failed task) has occurred.
This is achieved by adding a log appender to Qlik Sense Enterprise on Windows.

Log appenders offer a way to hook into Qlik Sense's logging subsystem, which is called log4net.

By adding a carefully crafted .xml file in the right location on the Sense server(s), you can make Sense notify Butler by means of UDP messages when the events of interest occur. Conceptually it looks like this:

Butler high level system overview

So what happens when a scheduled task fails?
Let's look at the steps:

1. A task is started by the Sense scheduler, either on a time schedule, as a result of some other task(s) finishing or manually by a user in the QMC or from the Hub.

2. When the task's state changes, entries are written to the Sense scheduler's log files using log4net (which is built into Qlik Sense). If the filter defined in the log appender (= the .xml file on the Sense server) matches the log entry at hand, the associated action in the log appender will be carried out.

3. Log appenders can do all kinds of things, everything from writing custom log files, sending basic emails, writing to databases and much more.
   Here we're interested in the log appender sending a UDP message from Qlik Sense to Butler.

4. The log appender provided as part of Butler will make log4net send a UDP message to Butler, including various info (task ID, task type, timestamp, host name etc) about the task that just failed, succeeded, or was stopped/aborted.

5. Butler will look at the incoming event and determine what it is about.
   For example: Is the event about a task failure, success, or abort? What type of task is it (reload, distribute, preload, external program, user sync)?
   Butler thus first works as a dispatcher. In a second step, after the initial dispatch, the event is sent to the relevant handler function within Butler based on both the event type and task type.

Response times are usually very good - Butler will typically get the UDP message within a few seconds after (for example) a task failing, with alerts going out shortly thereafter.

WARNING

The log appenders that catch task events in the Qlik Sense scheduler must be set up on all Qlik Sense servers where tasks are running for this feature to work.

Failing to do so will result in Butler not being notified about some task failures/successes/aborts.

Multi-task type support

The same log appender mechanism works for all task types. Butler automatically detects the task type from the incoming UDP message and routes it to the appropriate handler. This means:

• Reload tasks (type 0) get the full range of notification options
• Distribute, preload, external program, and user sync tasks (types 1-4) get email and/or InfluxDB notifications based on task type

Adding a log appender

This is possibly the trickiest part to get right when it comes to setting up log4net based alerts.
Still, if you start from the sample .xml file provided in the Butler repository on GitHub it's not too hard.
Those sample .xml files are also included in the release Zip files available on the Butler releases page.

The steps are:

1. In this case you want to be notified when certain events occur in the scheduler log files.

   This is important: Qlik Sense Enterprise on Windows consists of many different subsystems (engine, proxy, scheduler, printing etc) - here we're interested in log events from the scheduler subsystem.

   Add a file LocalLogConfig.xml in the C:\ProgramData\Qlik\Sense\Scheduler folder on the Sense server whose scheduler you want to get events from. If you have multiple Sense servers with schedulers running on them, the .xml file should be deployed on each server (assuming you want events from all the servers).

2. The contents of LocalLogConfig.xml will determine what events are forwarded to Butler, or what other actions will be taken by log4net. See below for examples.

3. Sense will eventually detect and load the new xml file, but it might take a while (minutes). Restarting the Qlik Sense Scheduler Windows service will make the changes take effect immediately.

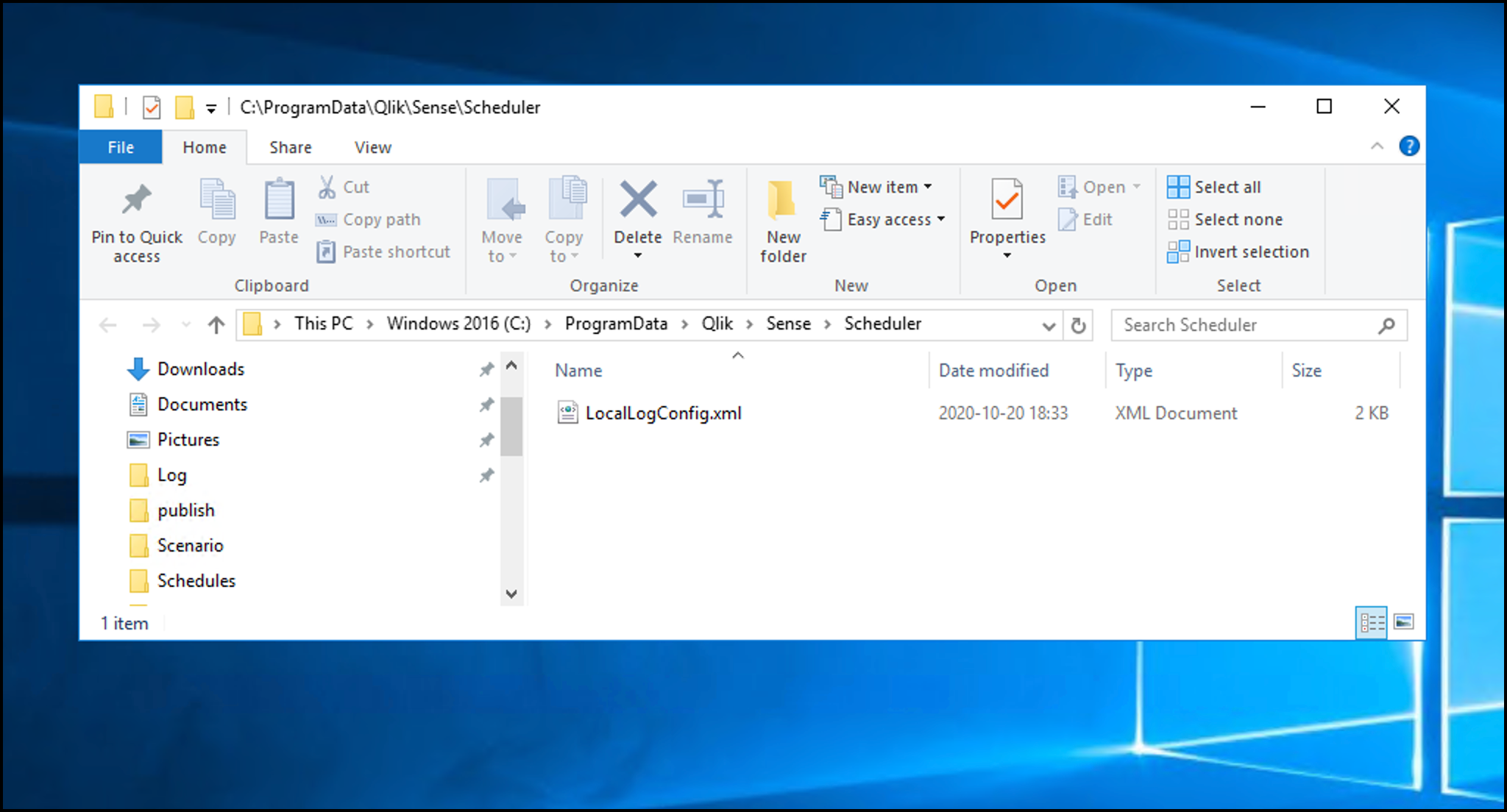

log4net log appender on Windows Server

Forwarding reload task events to Butler

Here's the XML that should go into C:\ProgramData\Qlik\Sense\Scheduler\LocalLogConfig.xml to enable the various kinds of Butler task reload alerts.

• The remoteAddress property should be set to the host name or IP where Butler is running.

• The remotePort property should match the port number specified in Butler's config file. Note that Butler uses different ports for task related and user activity related events.

• The first appender looks for the text "Max retries reached" in the System.Scheduler.Scheduler.Master.Task.TaskSession log stream. That log entry will be created when a reload task has failed and also carried out all its retries. Once the search string is found a UDP message will be sent to port 9998 on IP 10.11.12.13.

• The second appender looks for "Execution State Change to Aborting" in the System.Scheduler.Scheduler.Master.Task.TaskSession log stream. That log entry occurs when a user stops a running reload from the QMC's task view, or using the Sense APIs. When the search string is found a UDP message is once again sent to 10.11.12.13:9998, but with a different message (as specified in the conversionpattern property of the appender).

• The third appender looks for "Reload complete" in the System.Scheduler.Scheduler.Slave.Tasks.ReloadTask log stream.
  That log entry occurs when a reload task has completed successfully.

Here is an XML file that would forward log events as UDP messages to Butler:

<?xml version="1.0" encoding="UTF-8"?>

<configuration>
    <!-- Appender for detecting reload task failures. Only the last of potentially several retries is reported -->
    <appender name="TaskFailureLogger" type="log4net.Appender.UdpAppender">
        <filter type="log4net.Filter.StringMatchFilter">
            <param name="stringToMatch" value="Max retries reached" />
        </filter>
        <filter type="log4net.Filter.DenyAllFilter" />
        <param name="remoteAddress" value="<IP of server where Butler is running>" />
        <param name="remotePort" value="9998" />
        <param name="encoding" value="utf-8" />
        <layout type="log4net.Layout.PatternLayout">
            <converter>
                <param name="name" value="hostname" />
                <param name="type" value="Qlik.Sense.Logging.log4net.Layout.Pattern.HostNamePatternConverter" />
            </converter>
            <param name="conversionpattern" value="/scheduler-reload-failed/;%hostname;%property{TaskName};%property{AppName};%property{User};%property{TaskId};%property{AppId};%date;%level;%property{ExecutionId};%message" />
        </layout>
    </appender>

    <!-- Appender for detecting aborted reloads -->
    <appender name="AbortedReloadTaskLogger" type="log4net.Appender.UdpAppender">
        <filter type="log4net.Filter.StringMatchFilter">
            <param name="stringToMatch" value="Execution State Change to Aborting" />
        </filter>
        <filter type="log4net.Filter.DenyAllFilter" />
        <param name="remoteAddress" value="<IP of server where Butler is running>" />
        <param name="remotePort" value="9998" />
        <param name="encoding" value="utf-8" />
        <layout type="log4net.Layout.PatternLayout">
            <converter>
                <param name="name" value="hostname" />
                <param name="type" value="Qlik.Sense.Logging.log4net.Layout.Pattern.HostNamePatternConverter" />
            </converter>
            <param name="conversionpattern" value="/scheduler-reload-aborted/;%hostname;%property{TaskName};%property{AppName};%property{User};%property{TaskId};%property{AppId};%date;%level;%property{ExecutionId};%message" />
        </layout>
    </appender>

    <!-- Appender for detecting successful reload tasks -->
    <appender name="ReloadTaskSuccessLogger" type="log4net.Appender.UdpAppender">
        <filter type="log4net.Filter.StringMatchFilter">
            <param name="stringToMatch" value="Execution State Change to FinishedSuccess" />
        </filter>
        <filter type="log4net.Filter.DenyAllFilter" />
        <param name="remoteAddress" value="<IP of server where Butler is running>" />
        <param name="remotePort" value="9998" />
        <param name="encoding" value="utf-8" />
        <layout type="log4net.Layout.PatternLayout">
            <converter>
                <param name="name" value="hostname" />
                <param name="type" value="Qlik.Sense.Logging.log4net.Layout.Pattern.HostNamePatternConverter" />
            </converter>
            <param name="conversionpattern" value="/scheduler-reloadtask-success/;%hostname;%property{TaskName};%property{AppName};%property{User};%property{TaskId};%property{AppId};%date;%level;%property{ExecutionId};%message" />
        </layout>
    </appender>

    <!-- Send message to Butler on task failure -->
    <!-- Send message to Butler on task abort -->
    <!-- Send message to Butler on reload task success -->
    <logger name="System.Scheduler.Scheduler.Master.Task.TaskSession">
        <appender-ref ref="TaskFailureLogger" />
        <appender-ref ref="AbortedReloadTaskLogger" />
        <appender-ref ref="ReloadTaskSuccessLogger" />
    </logger>

</configuration>

The above configuration is enough to support all task reload alerts currently supported by Butler.

Sending basic alert emails from Qlik Sense/log4net

If you are happy with the more basic/limited reload-failed alert emails provided by log4net, you can add a SMTP appender like this (the example below is for sending emails using Google GMail, customize as needed).

TIP

If sending alert emails from Log4Net you will not get any of the nice formatting, script logs or other features that Butler provides in its alerts.

The email will instead just tell you that a task failed, and include some basic information about the task (task name, specifically).

<?xml version="1.0"?>
<configuration>
    <!-- Mail appender-->
    <appender name="MailAppender" type="log4net.Appender.SmtpAppender">
        <filter type="log4net.Filter.StringMatchFilter">
            <param name="stringToMatch" value="Message from ReloadProvider" />
        </filter>
        <filter type="log4net.Filter.DenyAllFilter" />
        <evaluator type="log4net.Core.LevelEvaluator">
            <param name="threshold" value="ERROR"/>
        </evaluator>
        <param name="to" value="<email address to send failed task notification emails to>" />
        <param name="from" value="<sender email address used in notification emails>" />
        <param name="subject" value="Qlik Sense failed task (server <servername>)" />
        <param name="smtpHost" value="smtp.gmail.com" />
        <param name="port" value="587" />
        <param name="EnableSsl" value="true" />
        <param name="Authentication" value="Basic" />
        <param name="username" value="<Gmail username>" />
        <param name="password" value="<Gmail password>" />
        <param name="bufferSize" value="0" /> <!-- Set this to 0 to make sure an email is sent on every error -->
        <param name="lossy" value="true" />
        <layout type="log4net.Layout.PatternLayout">
            <param name="conversionPattern" value="%newline%date %-5level %newline%property{TaskName}%newline%property{AppName}%newline%message%newline%newline%newline" />
        </layout>
    </appender>

    <!--Send mail on task failure-->
    <logger name="System.Scheduler.Scheduler.Slave.Tasks.ReloadTask">
        <appender-ref ref="MailAppender" />
    </logger>
</configuration>

References

• Qlik's documentation around log appenders and how to hook into the Sense logs is somewhat brief, but does provide a starting point if you want to dive deeper into this topic.

• The main log4net documentation (log4net is the logging framework used by Qlik Sense Enterprise) can also be useful.

These links describe how emails can be sent from the log4net logging framework itself, directly to the recipient. Butler includes sample XML files for this use case too, but Butler takes things further by using the data in the Sense logs to pull in more data around the failed or stopped reload.

In other words - Butler's alert emails are significantly more flexible and contain information (such as script logs) that are not available using purely log4net.
