Successful reloads

Tracking successful reloads can be useful for various reasons, for example knowing how long different app reloads takes on average.

What’s this?

Butler can optionally track successfully completed reload tasks.

Historically few Sense admins have probably paid much attention to successful reloads (but rather looked at failed ditto), but from a performance planning perspective it’s relevant to also monitor successful reloads.

Monitoring some successful reloads or all

Butler can be configured to track all successful reloads, or only those that have a specific custom property set.
This can be useful if you want to track successful reloads for some apps but not others.

  • To enable this feature for all reload tasks, set Butler.influxDb.reloadTaskSuccess.allReloadTasks.enable to true.
  • To enable this feature for only some reload tasks, set Butler.influxDb.reloadTaskSuccess.byCustomProperty.enable to true.
    This setting will have no effect if Butler.influxDb.reloadTaskSuccess.allReloadTasks.enable is set to true.
  • The name of the custom property is configured in the Butler config file, Butler.influxDb.reloadTaskSuccess.byCustomProperty.customPropertyName.
  • The value of the custom property that will enable per-task-tracking is found in Butler.influxDb.reloadTaskSuccess.byCustomProperty.enabledValue.

Using tags

Both Sense apps and reload tasks can have tags attached to them (set in the QMC).
Butler can be configured to get these tags and include them in the data sent to the enabled destinations.

In the case of InfluxDB the Sense tags will be sent as InfluxDB tags, which means they can be used to filter data in InfluxDB queries and Grafana dashboards.

The config file also allows for adding static tags to the data sent to InfluxDB, this is set in Butler.influxDb.reloadTaskSuccess.tag.static.

Grafana dashboards

Given the information stored in InfluxDB, several interesting Grafana dashboards can be created:

  • Distribution of reload durations. If filtering on a specific reload task this will show how much the task duration vary. Can be very useful when investigating server performance problems.
  • Number of successful reloads per (for example) 15-minute blocks. This shows how reloads are distributed over the course of a day, and can be useful when deciding when to schedule reloads.

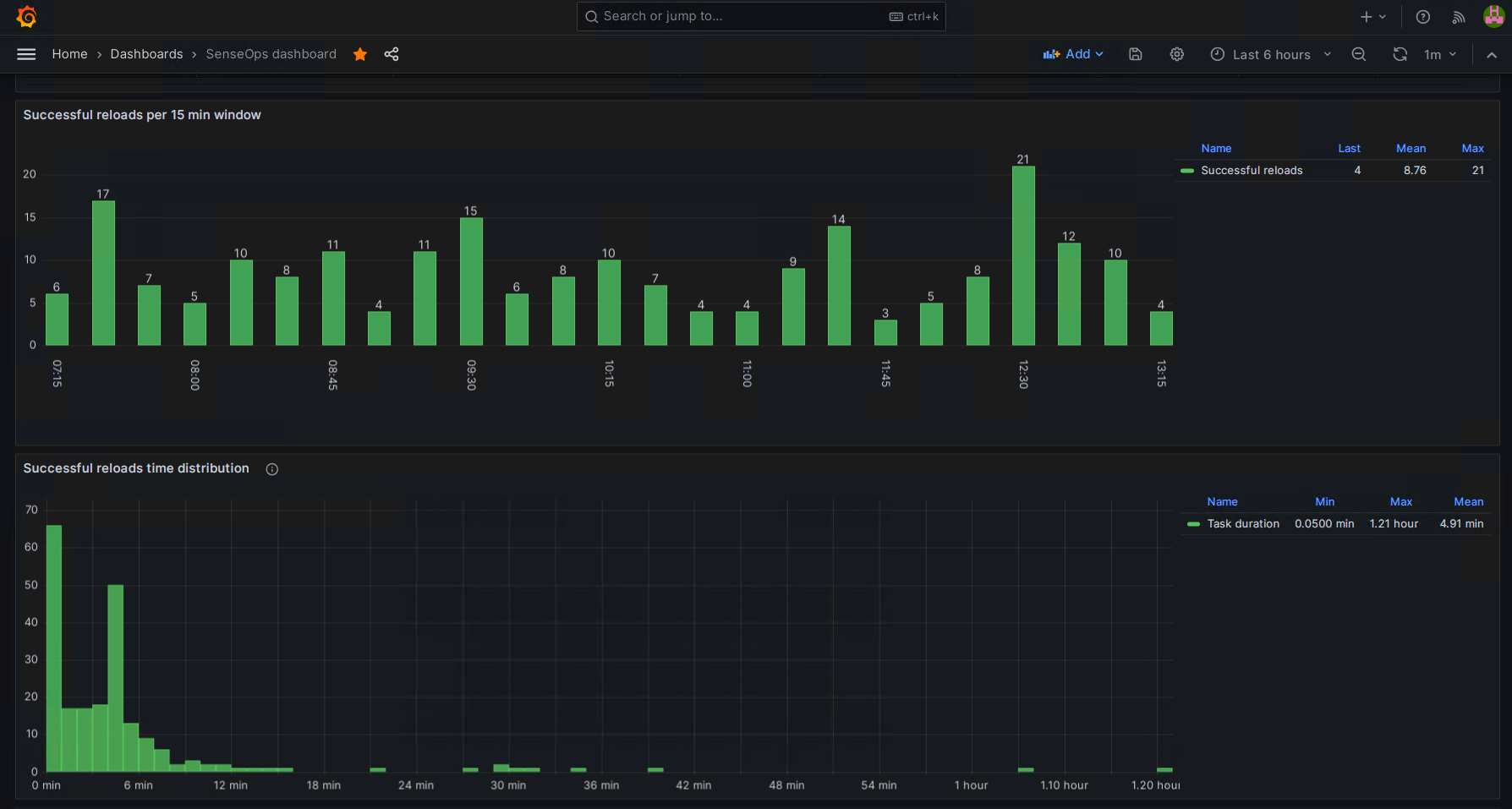

Sample dashboard showing the above charts:

alt text

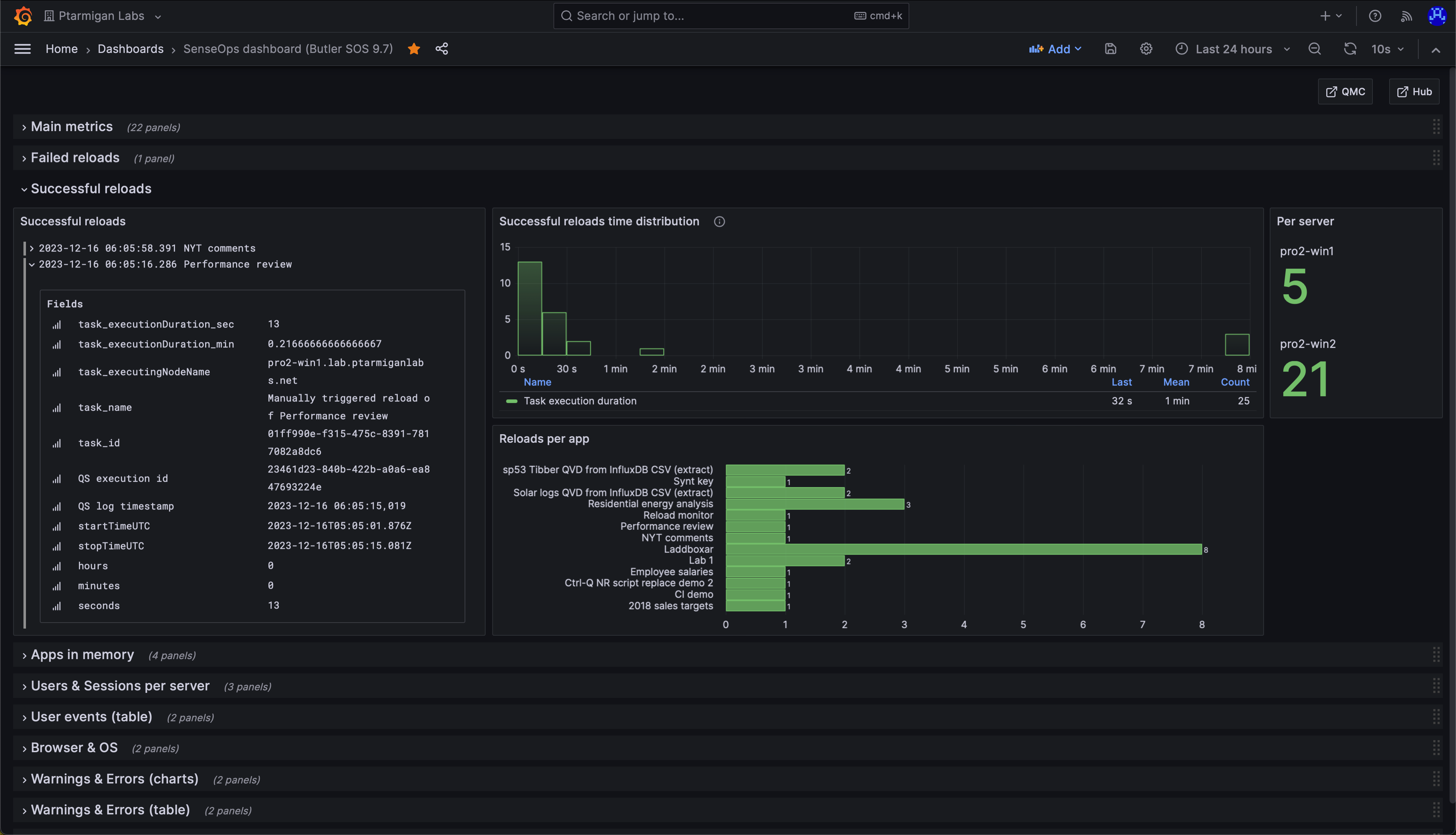

Here is another set of charts, also showing what metadata is available for each reload task:

alt text

How it works

Reload success UDP server

Butler includes a UDP server to which Sense’s logging framework Log4Net can send reload success messages.

The UDP server is configured in the Butler config file, and is disabled by default. When enabled, the UDP server listens for UDP messages on the configured port.

When a UDP message is received, the UDP server will parse the message to determine what it is about and to extract relevant data, then dispatch the message to the enabled destinations.
The XML appenders must be correctly deployed on the Sense servers for this to work.
See this page for more information on setting up the XML appenders.

In the case of successful reload tasks, the UDP server will determine which app was reloaded, the duration of the reload task, who started the task etc.
Butler will then send this information to the enabled destinations.

Supported destinations

The following destinations are supported:

  • InfluxDB

Config file settings

  # InfluxDB settings
    enable: false                   # Master switch for InfluxDB integration. If false, no data will be sent to InfluxDB.
      enable: true
        enable: false
        enable: true
        customPropertyName: 'Butler_SuccessReloadTask_InfluxDB'
        enabledValue: 'Yes'
        static:                 # Static attributes/dimensions to attach to events sent to InfluxDb
          # - name: event-specific-tag 1
          #   value: abc 123
          useAppTags: true      # Should app tags be sent to InfluxDb as tags?
          useTaskTags: true     # Should task tags be sent to InfluxDb as tags?
Last modified 2023-12-16: Update info around log appenders (7dd8058)
